wall mounted
range of use 9l/min to 140l/min
wax thermoelement
temperature scale handles with pre-adjustable
safety stop between 33°C and 43°C
arrangement to make the thermal
disinfection easier
built-in non return valves and dirt strainers as compact service units

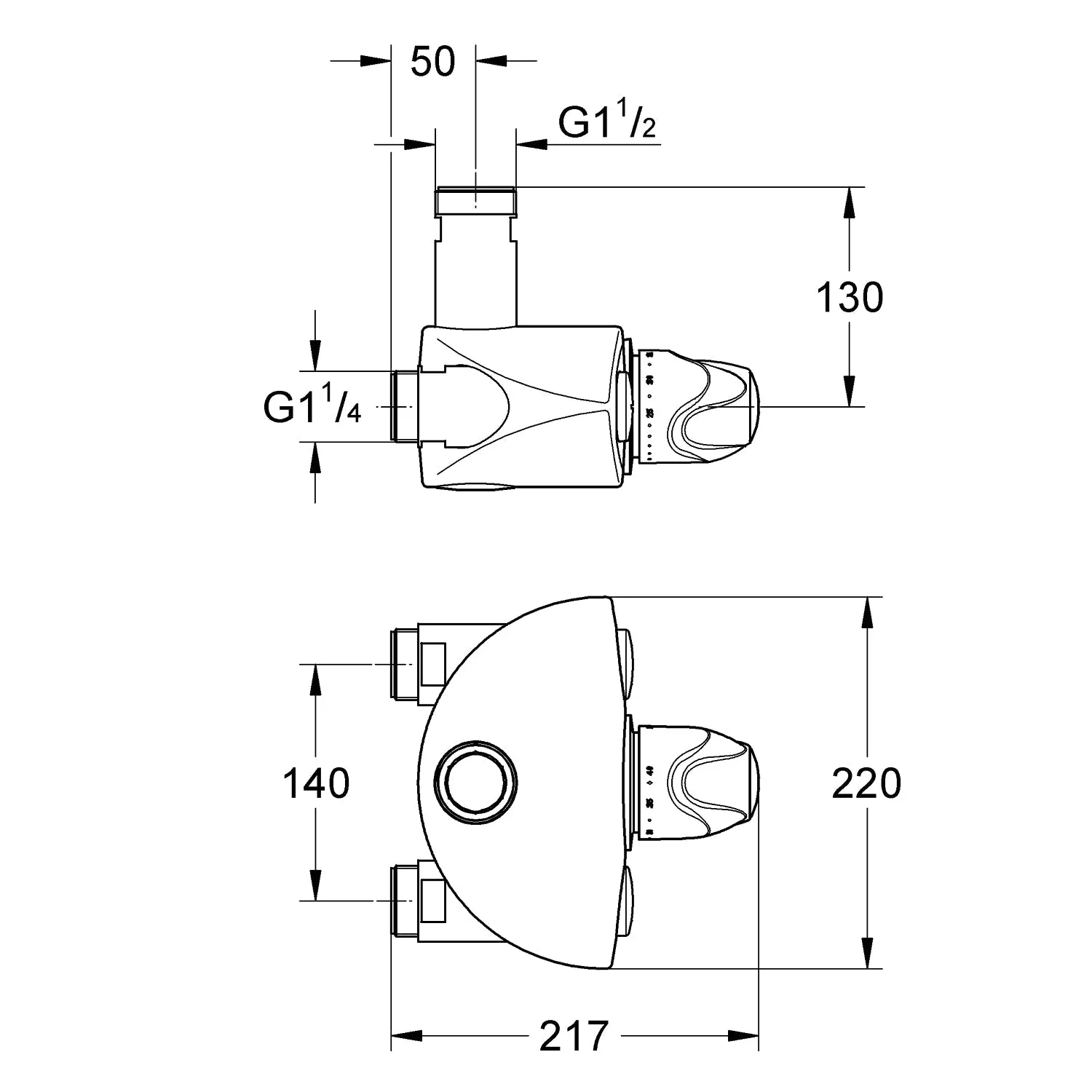

connecting thread 1 1/4"
outlet thread 1 1/2"
changeable top/bottom outlet
without connection unions for wall mounting
GROHE StarLight chrome finish

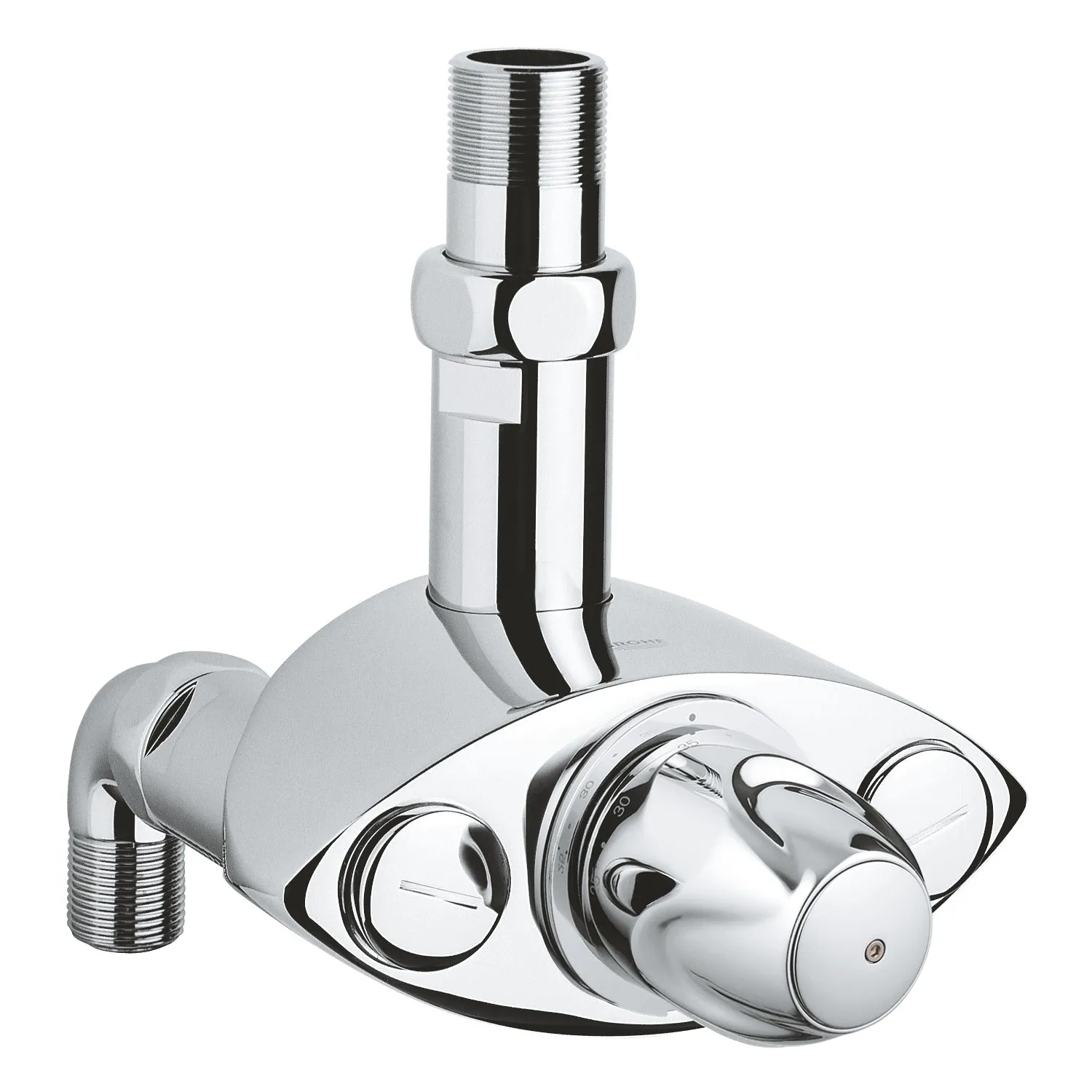

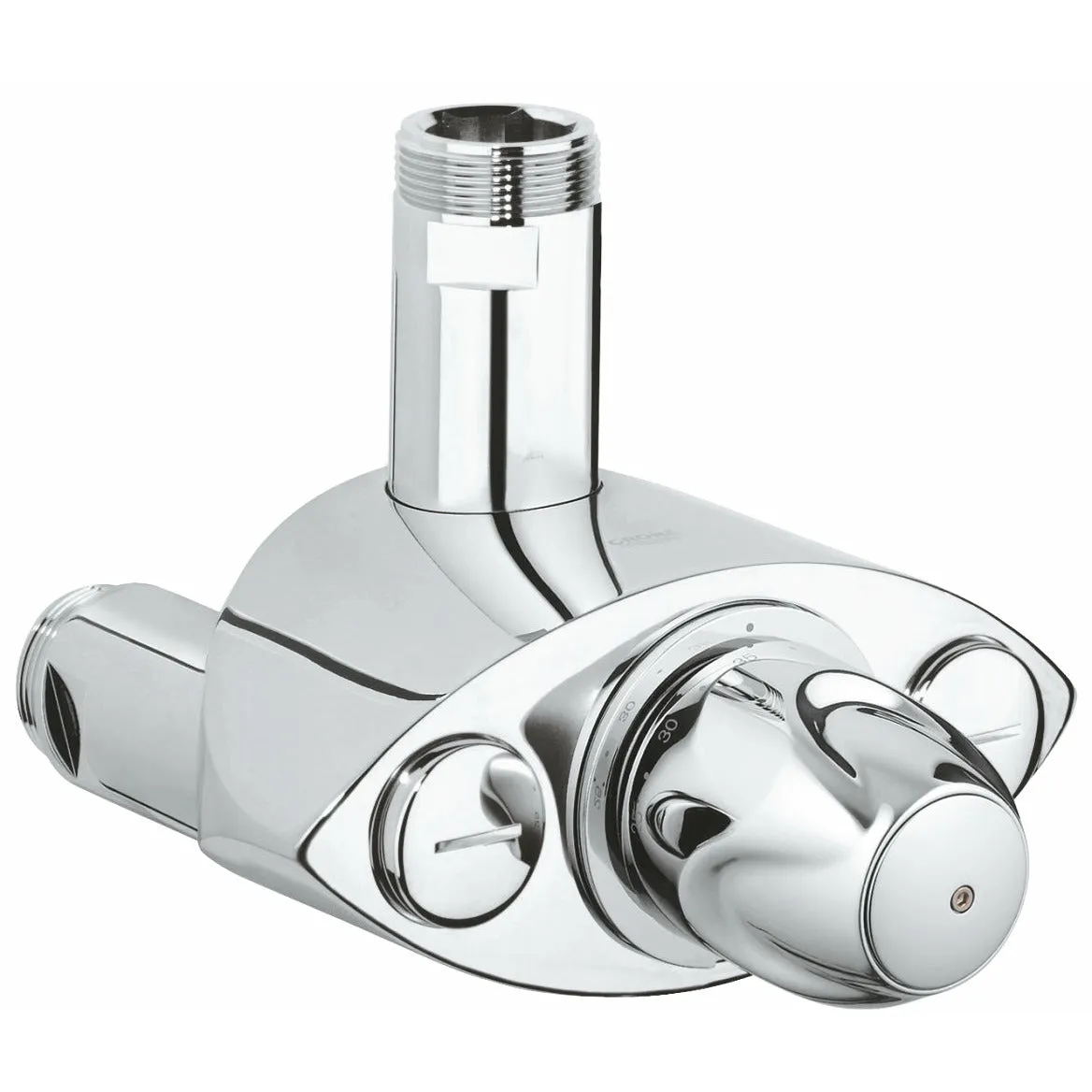

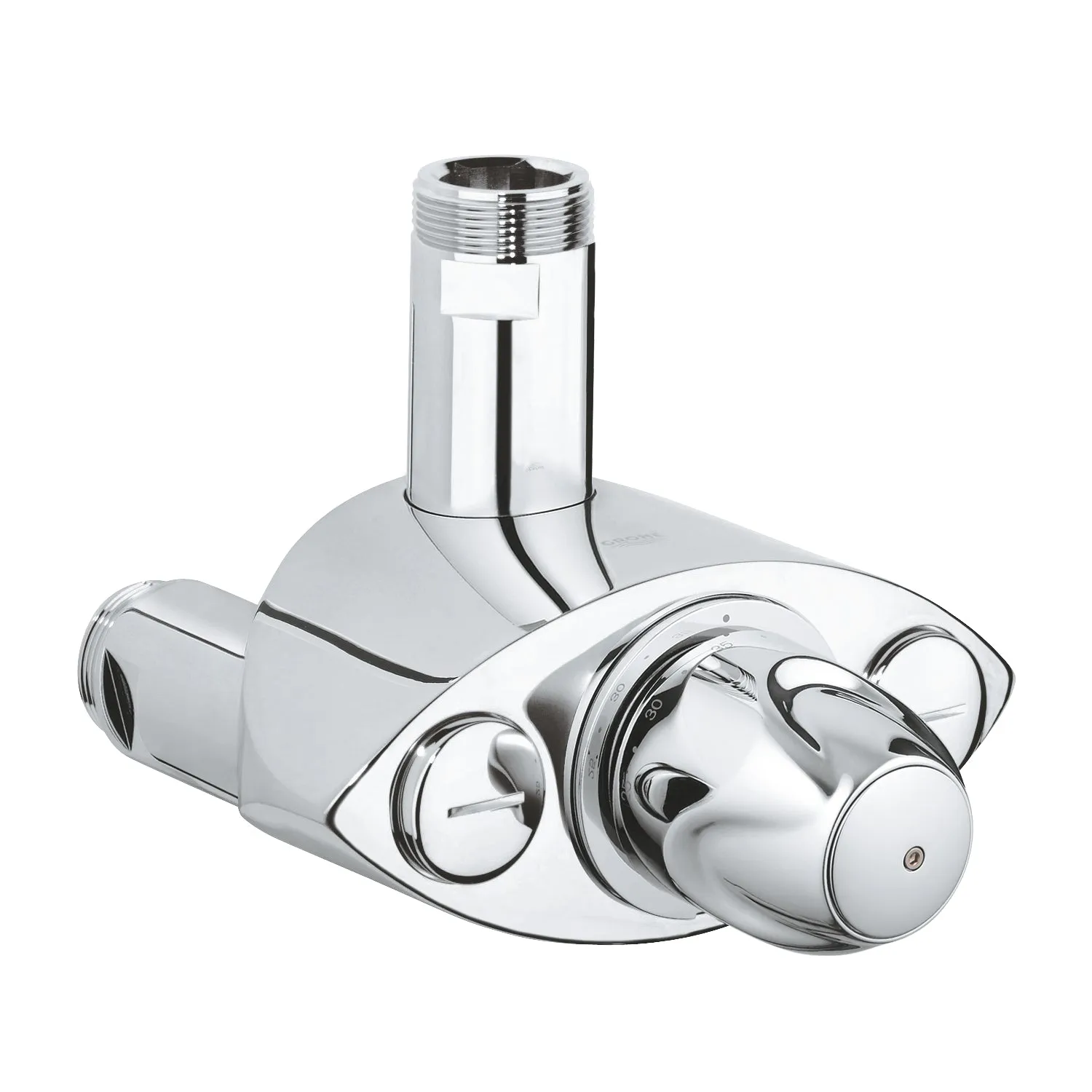

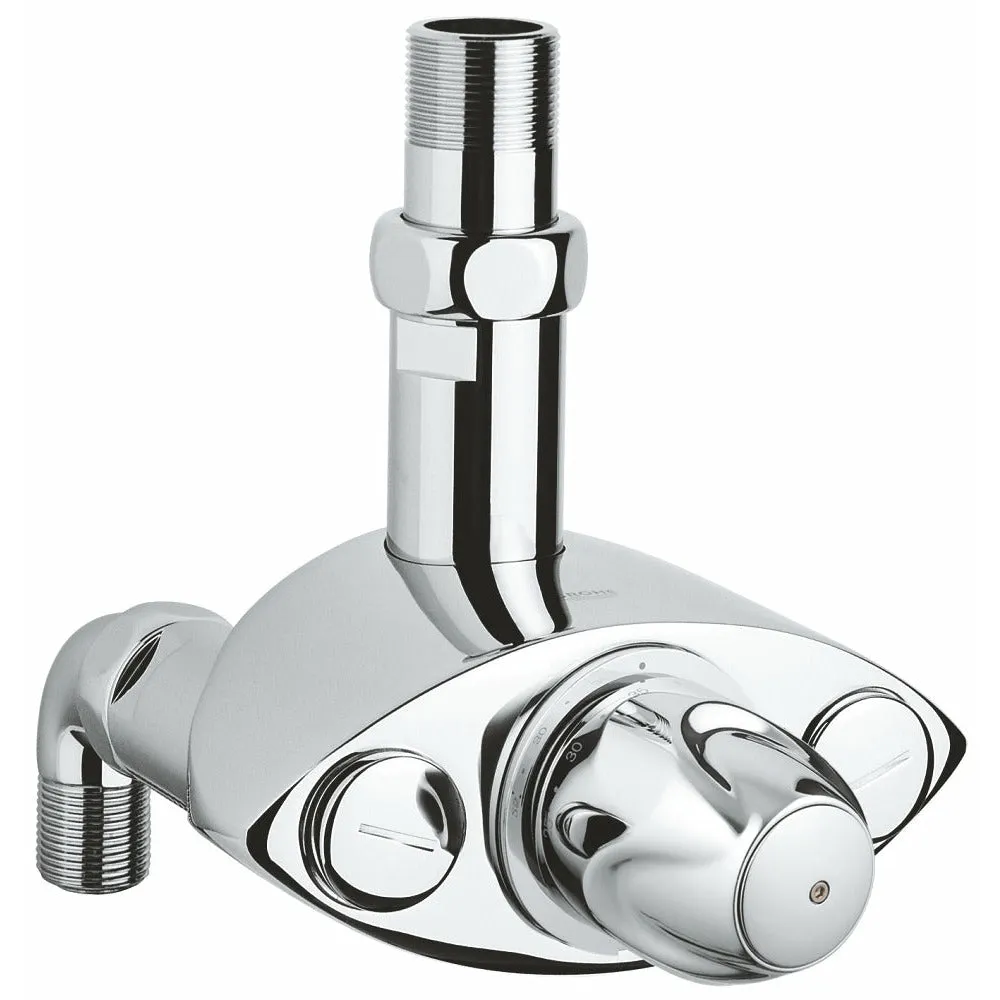

Rows of showers and washing areas frequently require large volumes of hot water with a clearly defined maximum temperature within a short time. The hot-water supply must be set up to ensure maximum performance and safety. High-quality thermostats provide protection against scalding for schools as well as sports and leisure facilities. The Grohtherm XL large thermostat guarantees maximum safety, delivering up to 140 litres of hot or fully premixed water per minute. For example, showers with self-closing faucets can be operated without individual temperature adjustment if the Grohtherm XL is installed upstream. Supplies up to 14 showers individually or in series systems simultaneously Simplified thermal disinfection (protection against legionella) Applications include sports facilities, swimming pools, fitness centres, saunas, spas
